高 NRC 溝付き音響パネル 汎用的なアプリケーションのための現代的な美学的なアピール

High NRC Grooved Acoustic Panel with Modern Aesthetic Appeal For Versatile Applications

Description:

Winego Grooved Acoustic Panels are designed to blend a timeless yet modern aesthetic, making them ideal for spaces such as offices, auditoriums, and churches. Featuring a slotted surface and back-perforated structure, these panels provide exceptional sound absorption in the mid-to-low frequency range, with an NRC of 0.85. They are especially suited for theaters and other performance venues, combining excellent acoustic performance with sleek, linear design elements. Additionally, these panels meet high fire-resistance standards and are environmentally safe.

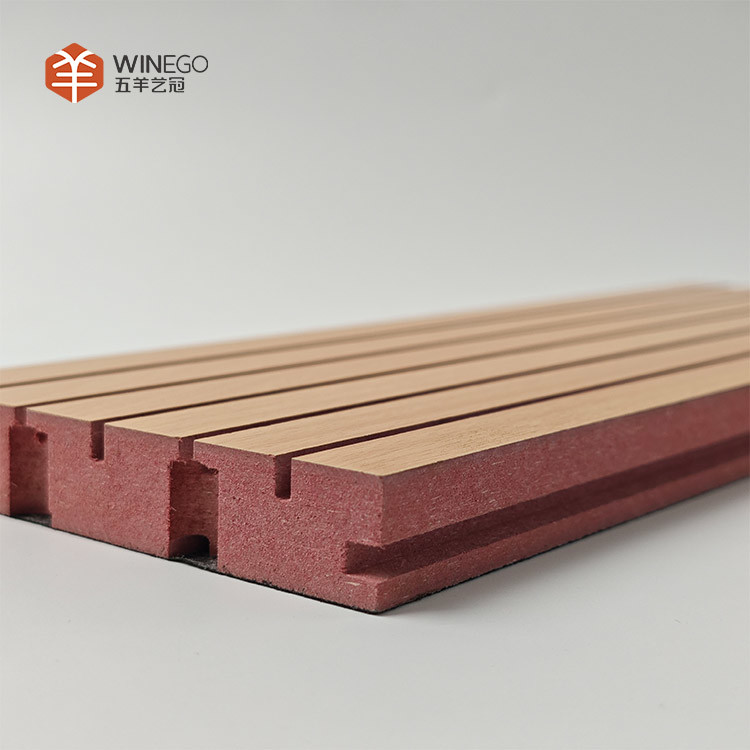

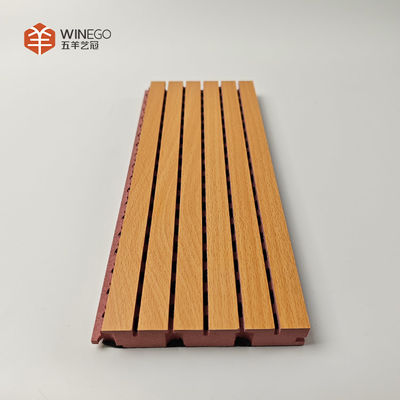

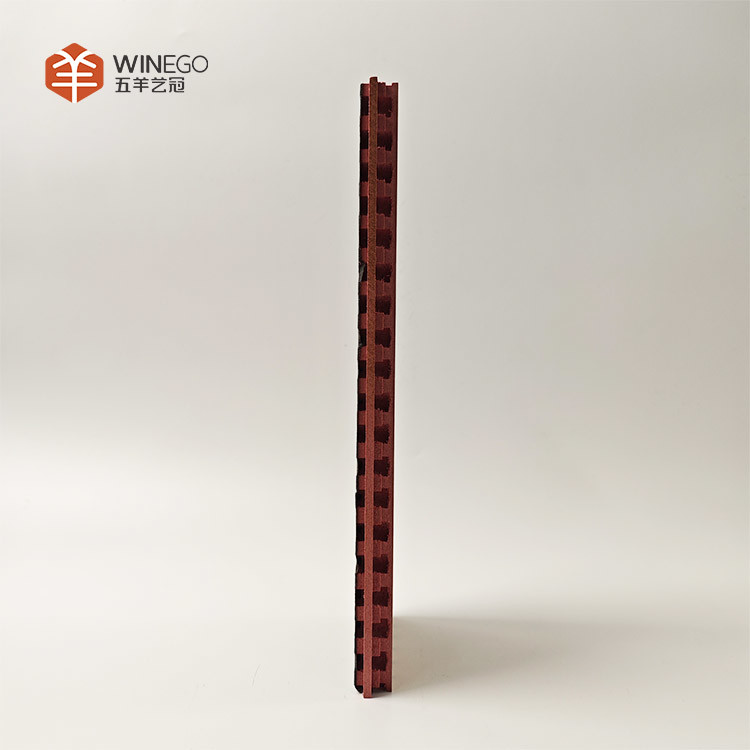

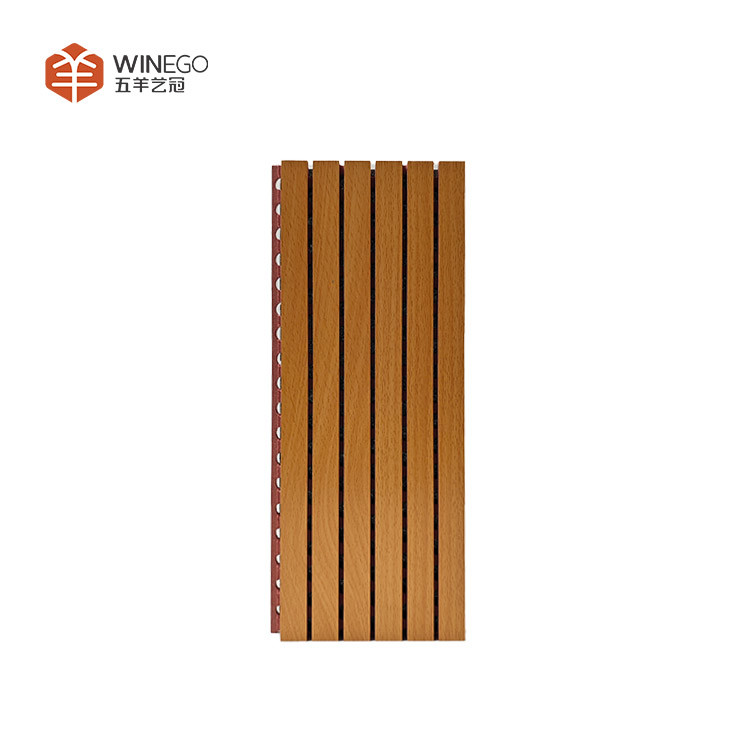

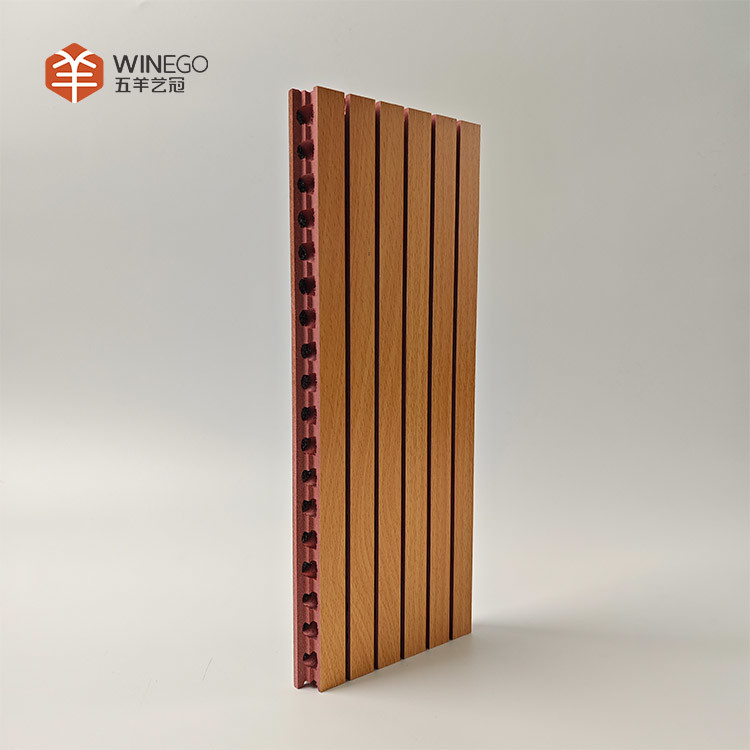

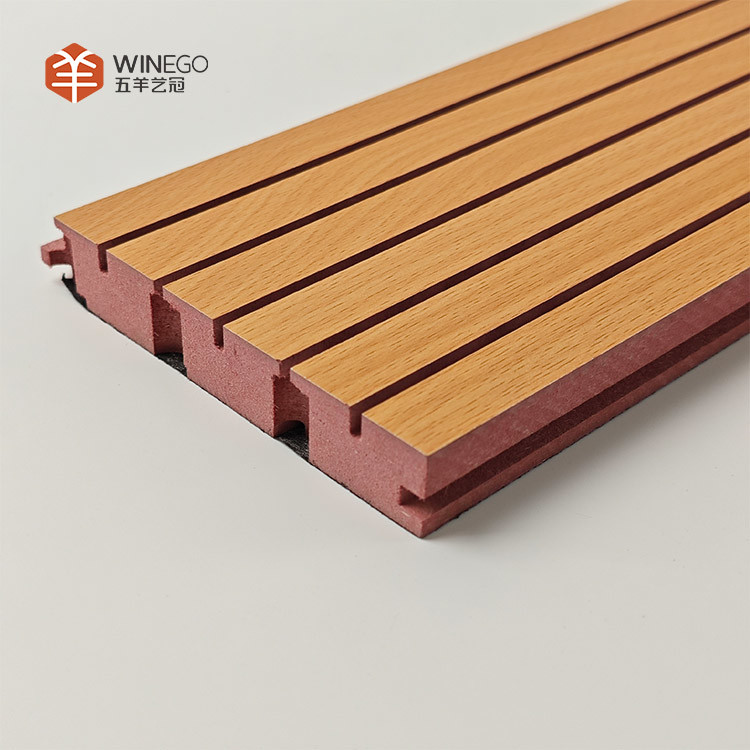

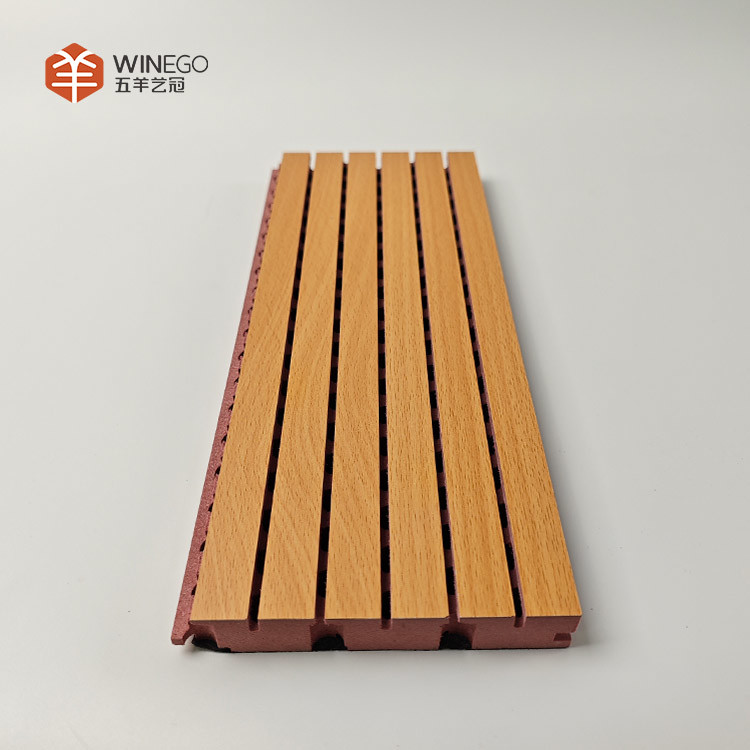

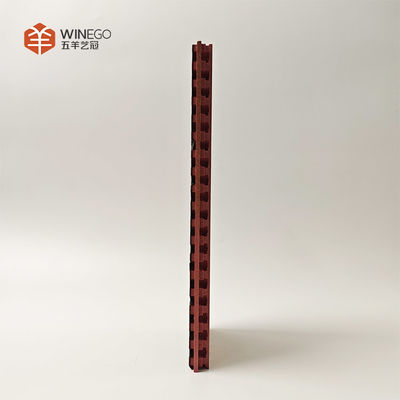

The grooved acoustic panel is a popular choice for soundproofing in contemporary buildings. Its structure, with grooves on the surface and perforations on the back, is based on advanced acoustic principles and scientific calculations. This design enhances noise reduction and sound absorption, particularly in medium and low frequencies. The panels also feature a natural wood grain finish, offering both superior acoustic functionality and aesthetic appeal.

Product Features:

Exceptional Sound Absorption:
These panels are engineered for outstanding acoustic performance, offering a Noise Reduction Coefficient (NRC) of 0.85. They effectively absorb mid-to-low frequency sounds, making them ideal for environments like conference rooms, theaters, and office spaces that require noise management.

Fire Safety Standards Compliance:
With enhanced safety in mind, these panels meet the BS476-PART 7 CLASS 1 fire-retardant standard, ensuring superior flame resistance. This makes them a dependable choice for use in public buildings, commercial facilities, and high-traffic areas where fire safety is essential.

Wide-Ranging Applications:
These versatile panels are suitable for various settings, including offices, commercial spaces, auditoriums, educational institutions, and industrial environments. Their adaptability provides both functional and visual benefits, blending seamlessly into a wide range of designs.

Customizable Design Features:
Grooved acoustic panels can be customized in terms of size, color, shape, and arrangement to meet specific project needs. This flexibility allows designers and architects to create tailored soundproofing solutions that complement unique interior aesthetics and architectural layouts.

Improved Commercial Atmospheres:
By efficiently managing noise levels, these panels help create a more comfortable atmosphere in commercial spaces like retail stores, restaurants, and hotels. They enhance the overall customer experience by reducing ambient noise, improving speech clarity, and fostering a relaxing environment for both customers and staff.

Specificatins:

Application:

Multi-functional hall
Conference room
Auditorium
Opera house
Concert hall
TV Station
Music hall
Piano room

How to install:

Method A:

1. Fix keel on wooden battens with gun nails.

2. Insert clips into the keel to secure panels.

3. Install from left to right and bottom to top.

4. Adjust clips if needed for alignment.

5. Leave a 3mm gap between panel heads.

Method B:

1. Level the wall with wooden battens.

2. Fill with fiberglass acoustic wool.

3. Fix panels on battens with gun nails.

FAQ:

1. What sizes are available?

- Standard sizes are 133*2440 mm and 197*2440 mm with thicknesses of 12mm, 15mm, and 18mm.

2. What materials are the panels made from?

- Options include MDF, MgO boards, carbon fiber boards, and solid wood.

3. Can I customize the panel finishes?

- Yes, finishes can be customized with melamine, veneer, HPL, and more.

4. What is the NRC of these panels?**

- The NRC can reach up to 0.9, providing excellent sound absorption for both commercial and privated space.
